KATADYN WATERMAKERS

	Website			Fact Sheet Downloads Survivor 06 Survivor 35 PowerSurvivor 40E PowerSurvivor 80E PowerSurvivor 160E

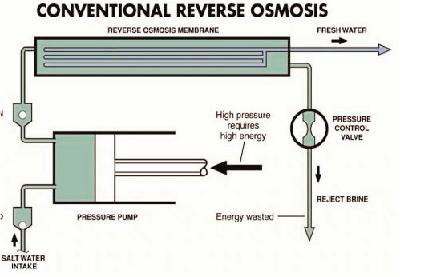

	REVERSE OSMOSIS To remove dissolved salts from seawater with reverse osmosis, part of the salt water is filtered through a semipermeable membrane. Only 10% of the water passes through the membrane. The remaining 90% flow past the membrane and at the same time cleans the membrane (self_cleaning effect). The small size of the "membrane pores" ensures extremely pure drinking water, but extremely high pressures must be generated _ normally 55 bar. Reverse osmosis is used worldwide to obtain drinking water, e.g. in the semi_conductor industry and in medicine.

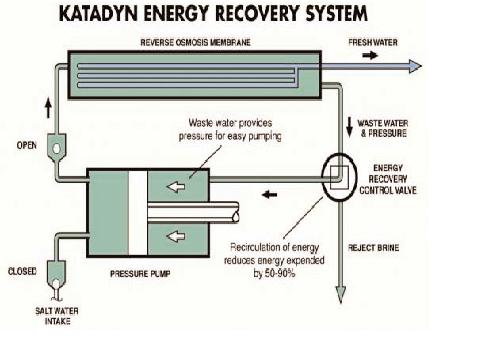

	KATADYN'S PATENTED ENERGY RECOVERY SYSTEM The Katadyn Energy Recovery system takes advantage of stored energy in the high pressure reject water that is typically wasted. The pressurized reject water is recirculated to the back side of the piston to aid the next stroke. This energy is kept in the system, resulting in less work to achieve fresh water.

Item Code		Product	BWS Price

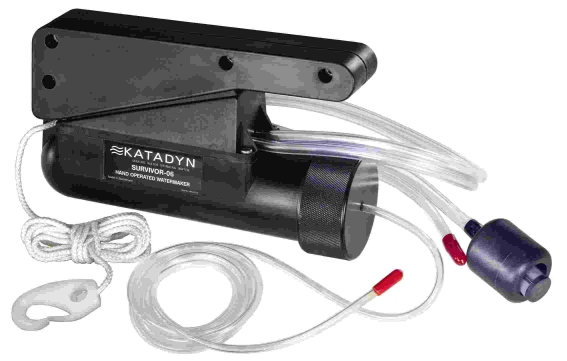

8013418		Survivor 06	£446.67

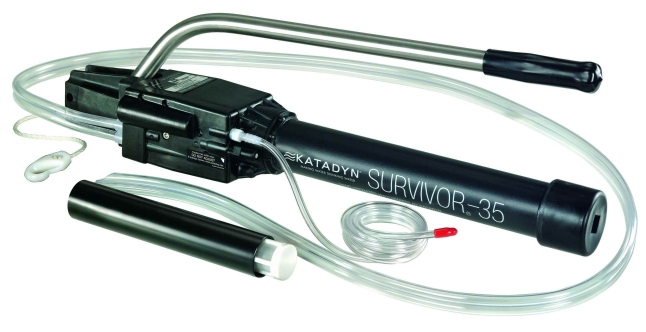

8013433		Survivor 35	£892.67

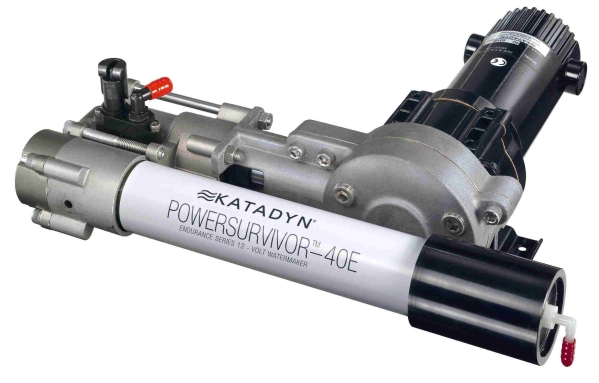

8013438		PowerSurvivor 40E	£1,876.00

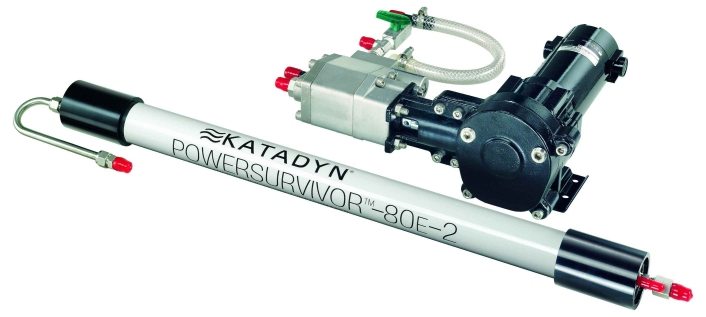

8013441		PowerSurvivor 80E Modular	£2,388.94

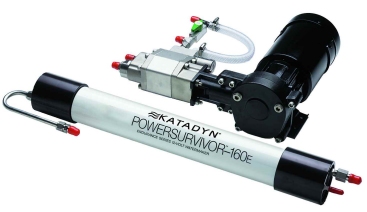

8013421		PowerSurvivor 160E	£2,774.00

8013439		PowerSurvivor 40E 24V	£1,999.61
8013442		PowerSurvivor 80E Modular 24V	£2,512.54
8013422		PowerSurvivor 160E 24V	£2,837.94
All Prices quoted include shipping to Jersey from Switzerland. Goods are in free circulation within EEC but prices exclude VAT. We do not hold all models in stock, please allow adequate time for delivery.

Watermaker Kits and Spare Parts 2007 All prices ex works Switzerland - shipping included if ordered with a watermaker

Code	Description	Price £
	Survivor 06-LS
8013204	Hose, Intake/Reject Kit	£7.28
8013842	Hose, Product Kit	£0.73
8013841	Membrane Housing LS	£28.89
	Survivor 06-LL	-
8013264	Hose, Intake/Reject Kit	£19.99
8013277	Hose, Product Kit	£52.94
8013810	Hoses Kit	£28.11
8013159	Pump Body Kit	£183.59
8013154	Membrane Housing LL	£45.77
8013253	Kit, Survivor 06-LL Seal Replacement	£6.24
8013235	Handle Extension	£162.63
	Survivor 06	-
8013141	Kit, Survivor 06 Tool	£599.38
8013166	Membrane Replacement Kit	£263.75
8013229	Hardware Survivor 06 Kit	£4.65
8013870	Strainer Kit	£6.97
8013846	Plug Ass.	£2.74
8013844	Spool Sleeve	£80.88
8013843	Valve Plug	£19.26
8013845	Spool Sleeve	£5.60
8013848	Relief Stem Ass.	£3.75
8013226	Lanyard (white)	£2.38
8013248	Check Valve	£3.70
8013992	Hose Permeate Survivor-06-LL	£2.07
	Survivor 35	-
8013053	Repair Seal Kit	£25.31
8013062	Hardware Survivor 35	£76.93
8012994	Handpump Handle	£108.99
8012953	Manifold with plastic hose barbs	£169.46
8013144	Brine Seal	£4.73
8013081	Handmechanical Housing	£12.29
8013186	Seal Ring, Spool	£0.48
8012962	Kit, Survivor 35 Pump Body Back	£93.03
	Survivor 35-LL-1	-
8013899	Membrane housing	£158.20
0	Survivor general	£0.00
8013327	Biocide 3.5 oz	£9.21
8013617	Acid Membrane Cleaner 8 oz	£12.49
8013616	Alkaline Membrane Cleaner 8 oz	£6.86
	PowerSurvivor 35	-
8013369	Membrane Cleaning Kit	£104.93
8013412	Piston Kit	£52.58
8013350	Extra Installation Fittings	£40.57
8012608	Set Upgrade PS-35 auf PS-40	£1,175.90
8013367	Extended Cruise Kit	£256.48
	PowerSurvivor 40	-
8012610	Repair Seal Kit	£72.99
8012606	Extended Cruise Kit	£215.45
8012607	Maintenance Package	£668.49
8012669	Pressure Relief Valve Kit	£19.96
8013915	Handle	£125.00
8012665	Kit, Check Valve Plate PowerSurvivor 40	£172.62
8012666	Pump Body Back	£211.76
8013995	Motor Drive 24 volt	£1,307.08
8013994	Motor Drive 12 Volt	£1,037.54
	PowerSurvivor 80	-
8012889	Repair Seal Kit	£70.30
8012895	Extended Cruise K
